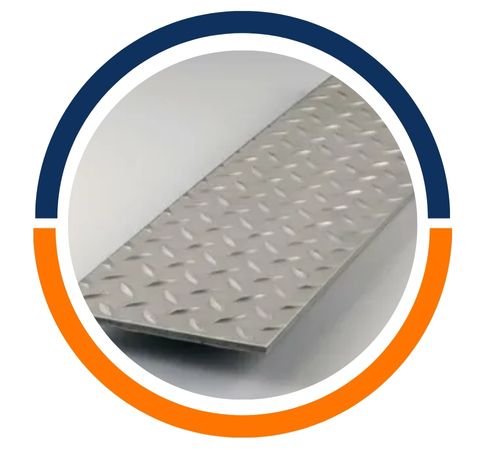

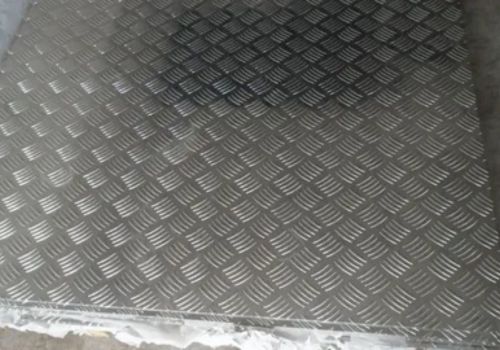

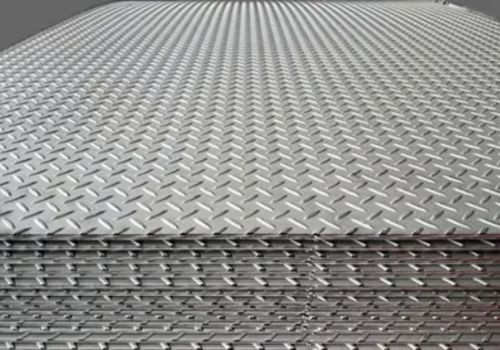

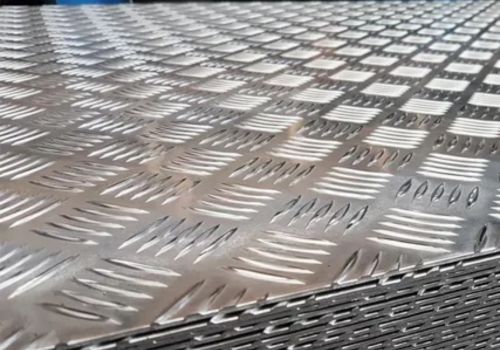

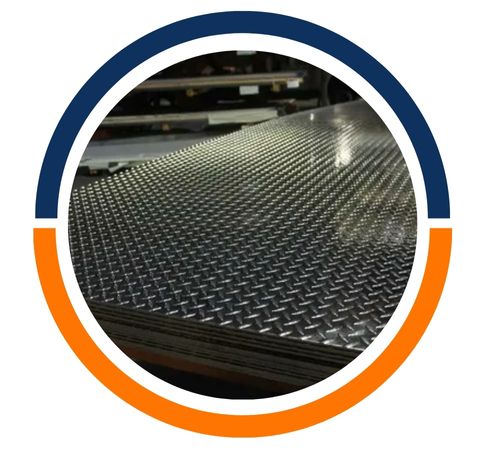

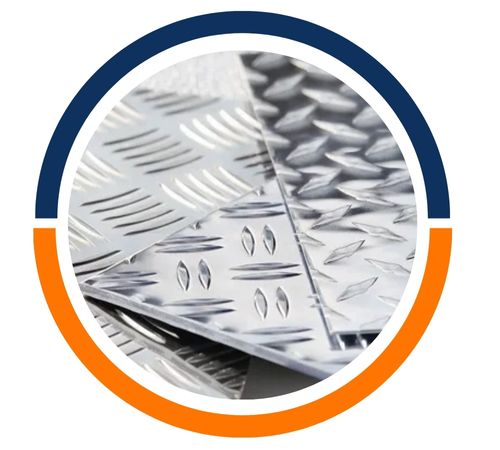

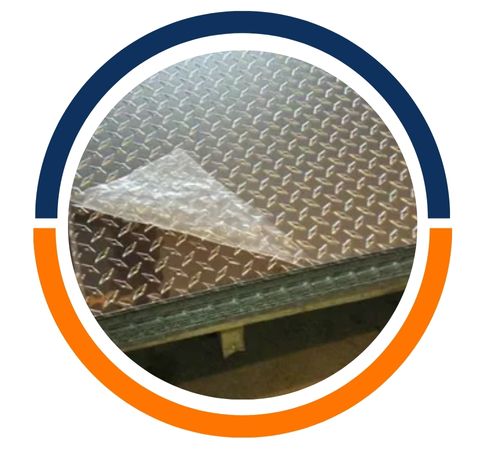

Liza Aluminium, located in Manila, Philippines, stands out as a top manufacturer and supplier of Aluminium 6082 Chequered Plates. These plates are celebrated for their impressive strength, outstanding resistance to corrosion, and attractive finish. With a raised pattern that boosts grip and safety, they’re perfect for both structural and decorative applications. Liza Aluminium is dedicated to crafting precision-engineered products that adhere to international standards, serving a variety of industries including marine, transportation, and construction. Their unwavering commitment to quality and innovation has made them a trusted name in aluminium solutions throughout the Philippines.
Aluminium 6082 Chequered Plates are mainly made of aluminium, with added elements like silicon (0.7–1.3%), magnesium (0.6–1.2%), manganese (0.4–1.0%), along with trace amounts of iron, copper, and zinc. They have a density of 2.70 g/cm³ and boast excellent mechanical strength, typically showing a tensile strength of 260–310 MPa and a yield strength of 240 MPa. These plates are known for their high corrosion resistance, good weldability, and superb machinability, making them perfect for heat treatment and various industrial applications.
Standards : ASTM B209 / ASME SB209
Temper : O, T3, T4, T5, T6, T651 T6511
Thickness : 0.3-600
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

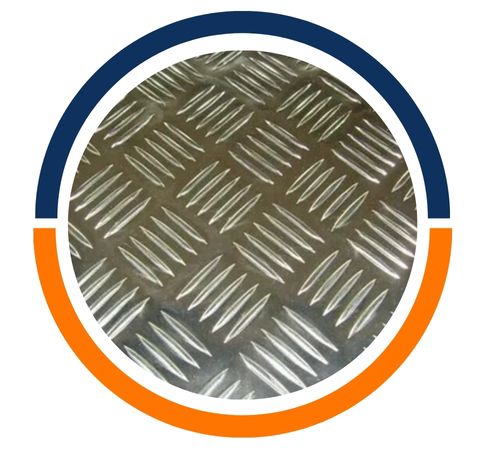

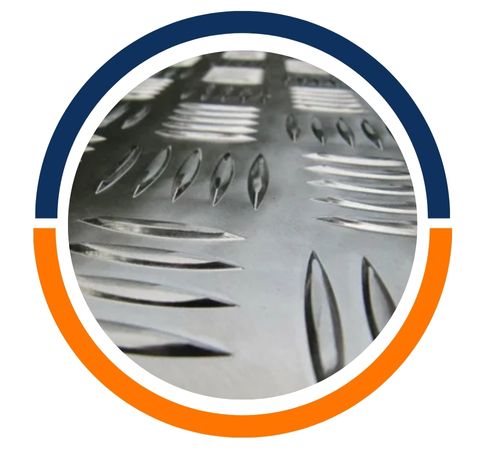

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate
| UNS | EN | DIN | ISO | BS (OLD) | USA | WNR |
| A96082 | AW-6082 | AlMgSi1 | Al Si1MgMn | HE30 | AA6082 | 3.2315 |
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Zn | Ti | Other Each | Others Total |
| Aluminium 6082 | Bal | 0.7 – 1.3 | 0.50 max | 0.10 max | 0.40-1.00 | 0.25 max | 0.06-1.20 | 0.20 max | 0.10 max | 0.05 max | 0.15 max |
| Tensile Strength, MPa | Yield Strength 0.2%, MPa | Elongation % | Hardness HBW |
| 295 | 240 | 8 | 95 |
Liza Aluminium based in Manila, Philippines is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 6082 Chequered Plates to meet specific project needs. Our team at Liza Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@lizaaluminium.com
You’ll find Aluminium 6082 Chequered Plates widely used in industries that demand high strength-to-weight ratios and non-slip surfaces. They’re often used in flooring for buses, trucks, and ships thanks to their anti-slip texture and resistance to corrosion. Additionally, they find applications in construction for stair treads, platforms, and walkways, as well as in architectural cladding and decorative panels. In the marine industry, these plates perform reliably even in tough environments. Their mechanical strength, versatility, and visual appeal make them ideal for a broad range of engineering and design projects.
