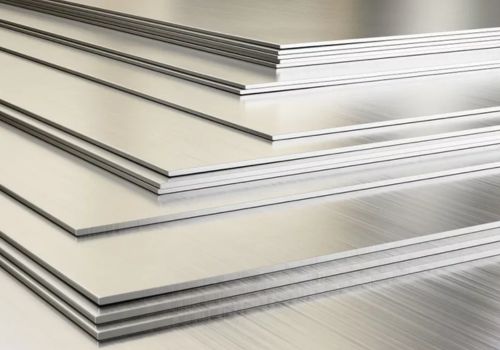

Liza Aluminium, based in Manila, Philippines, is a trusted manufacturer and supplier of high-quality aluminium products, specializing in Aluminium 1050 sheets and plates. Known for their excellent corrosion resistance, high electrical and thermal conductivity, and outstanding formability, our Aluminium 1050 sheets and plates are ideal for industries such as electronics, packaging, and automotive. We provide customized solutions to meet specific requirements, ensuring durability and performance. With a commitment to quality, Liza Aluminium is your reliable partner for all aluminium 1050 sheet and plate needs.
Aluminium 1050 Sheets and Plates are made with at least 99.5% pure aluminium and contain small amounts of silicon, iron, copper, manganese, magnesium, zinc, and titanium. This alloy offers excellent corrosion resistance, great ductility, and strong electrical and thermal conductivity. It has a tensile strength between 60–100 MPa and a Brinell hardness of about 20 HB. Although it cannot be heat-treated, it can be cold worked and annealed to increase its strength, making it ideal for various industrial and commercial applications.
| Standards | ASTM B209 / ASME SB209 |
| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 0.2-50 |
| Width | 100-2600 |
| Length | 500-10000 |
| Surface | Bright, polished, hair line, brush, sand blast, embossed, etching, etc. |
| Finish | Mill, Customer specific finish |
| Aluminum Sheet/ Plate Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
Liza Aluminium based in Manila, Philippines is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
| Product | Thickness | Weight |
|---|---|---|
| 1050 Aluminium Plate | 0,30 mm | 0,810 Kg/m2 |
| 1050 Aluminium Plate | 0,40 mm | 1,080 Kg/m2 |
| 1050 Aluminium Plate | 0,50 mm | 1,350 Kg/m2 |
| 1050 Aluminium Plate | 0,60 mm | 1,620 Kg/m2 |
| 1050 Aluminium Plate | 0,70 mm | 1,890 Kg/m2 |
| 1050 Aluminium Plate | 0,80 mm | 2,160 Kg/m2 |
| 1050 Aluminium Plate | 0,90 mm | 2,430 Kg/m2 |
| 1050 Aluminium Plate | 1,00 mm | 2,700 Kg/m2 |
| 1050 Aluminium Plate | 1,20 mm | 3,240 Kg/m2 |
| 1050 Aluminium Plate | 1,40 mm | 3,780 Kg/m2 |
| 1050 Aluminium Plate | 1,50 mm | 4,050 Kg/m2 |
| 1050 Aluminium Plate | 1,60 mm | 4,320 Kg/m2 |
| 1050 Aluminium Plate | 1,80 mm | 4,860 Kg/m2 |
| 1050 Aluminium Plate | 2,00 mm | 5,400 Kg/m2 |
| 1050 Aluminium Plate | 2,20 mm | 5,940 Kg/m2 |
| 1050 Aluminium Plate | 2,50 mm | 6,750 Kg/m2 |
| 1050 Aluminium Plate | 3,00 mm | 8,100 Kg/m2 |
| 1050 Aluminium Plate | 4,00 mm | 10,800 Kg/m2 |
| 1050 Aluminium Plate | 5,00 mm | 13,500 Kg/m2 |
| 1050 Aluminium Plate | 6,00 mm | 16,200 Kg/m2 |
| 1050 Aluminium Plate | 10,00 mm | 27,000 Kg/m2 |
| 1050 Aluminium Plate | 12,00 mm | 32,400 Kg/m2 |
| 1050 Aluminium Plate | 15,00 mm | 40,500 Kg/m2 |
| 1050 Aluminium Plate | 20,00 mm | 54,000 Kg/m2 |
Yes, we offer custom sizes for Aluminium 1050 Sheets and Plates to meet specific project needs. Our team at Liza Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@lizaaluminium.com
Aluminium 1050 Sheets and Plates are widely used because they are durable, lightweight, and easy to shape. In construction, they are used for roofing, cladding, and decorative panels. In the electrical industry, they are used for conductors, transformer windings, and other parts that require high conductivity. They are also used in packaging, signage, and HVAC systems. Additionally, these sheets and plates are suitable for food processing and chemical industries, where cleanliness, corrosion resistance, and long-lasting performance are essential.
