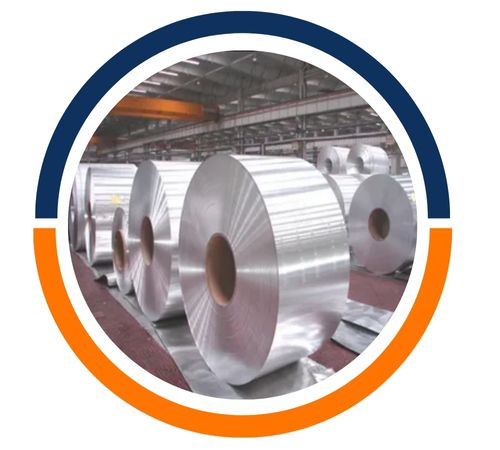

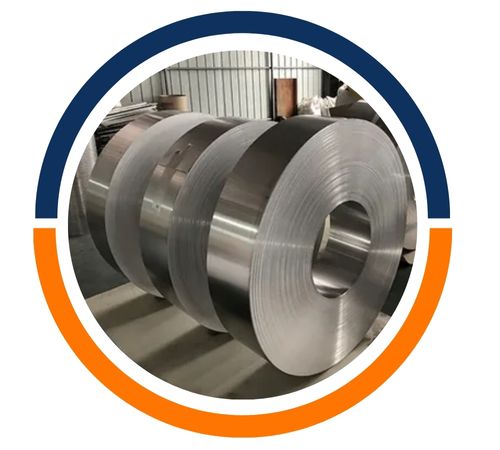

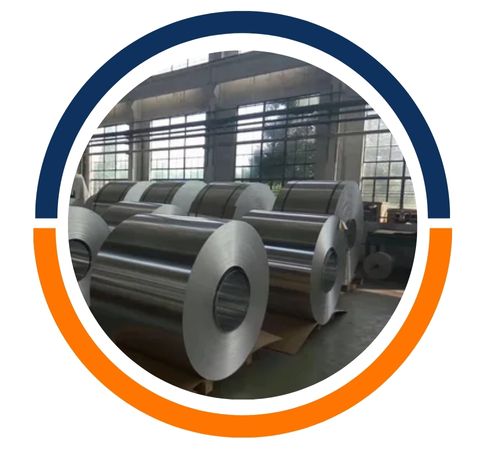

Liza Aluminium, a reputable manufacturer and supplier located in Manila, Philippines, proudly offers top-notch Aluminium 5005 Coils that are crafted for exceptional formability, corrosion resistance, and a stunning finish. These coils are produced using cutting-edge rolling and finishing techniques, ensuring they boast remarkable surface quality, consistent thickness, and long-lasting durability. Known for their resistance to oxidation and atmospheric corrosion, Aluminium 5005 Coils are perfect for both indoor and outdoor uses. Liza Aluminium guarantees that each coil adheres to international standards, delivering dependable and high-performance solutions for architectural, industrial, and fabrication needs.
The Aluminium 5005 Coils primarily consist of aluminium with magnesium (0.5–1.1%) as the key alloying element, along with small amounts of silicon, iron, manganese, and chromium. This alloy, which isn’t heat-treatable, gains strength through cold working and offers impressive corrosion resistance, especially in marine and industrial settings. Typical mechanical properties include a tensile strength ranging from 190 to 240 MPa, yield strength between 80 and 130 MPa, and good elongation depending on the temper. Additionally, Aluminium 5005 showcases excellent anodizing properties, making it ideal for decorative and architectural finishes.
Standards : ASTM B209 / ASME SB209
Temper : O,H14,H16,H18,H19,H22,H24
Thickness : 0.1-4
Width : coil
Length : 100-1600
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Coil Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

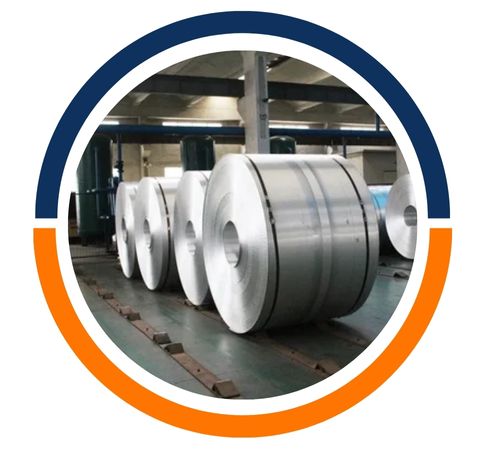

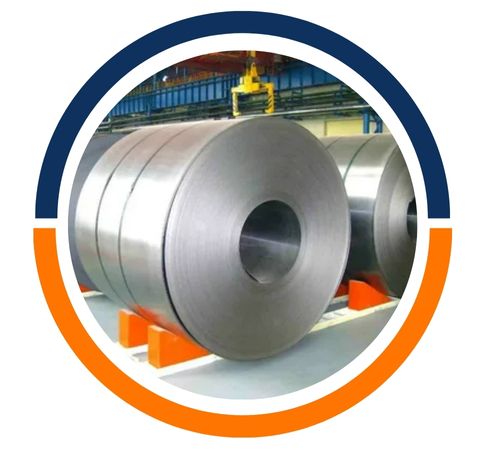

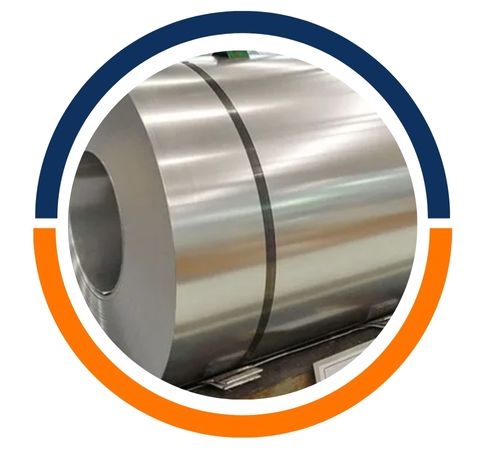

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Coil
| European Standard | GERMANY | UNS | DIN,WNr |
| B57S | AI-Mg-1 | A95005 | – |
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Zn | Others Each | Others Total |
| 5005 | Bal | 0.30 max | 0.70 max | 0.20 max | 0.20 max | 0.10 max | 0.50 / 1.10 | 0.25 max | 0.05 max | 0.15 max |
| Material | Temper | Tensile Strength (N/mm²) | Yield Strength (N/mm²) | Elongation on 50mm (%) | |||
| 0.5 mm | 0.8 mm | 1.3 mm | 2.6mm | ||||
| 5005 | 0 | 95-145 | – | 18 | 20 | 21 | 22 |
| 5005 | H12 | 125-170 | 80 | 4 | 5 | 6 | 8 |
| 5005 | H14 | 145-185 | 100 | 3 | 3 | 5 | 6 |
| 5005 | H18 | 185 min | 165 | 1 | 2 | 3 | 3 |
Liza Aluminium based in Manila, Philippines is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5005 Coils to meet specific project needs. Our team at Liza Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@lizaaluminium.com
These coils are widely utilized in industries that require lightweight and corrosion-resistant materials. They are particularly well-suited for roofing, cladding, curtain walls, and various architectural applications thanks to their outstanding anodized finish. Moreover, Aluminium 5005 Coils find their place in marine components, chemical processing equipment, transportation panels, and signage. Their high formability allows for easy shaping, cutting, and welding, making them versatile for numerous applications. With a perfect blend of strength, aesthetics, and corrosion resistance, Aluminium 5005 Coils have become a go-to choice for contemporary construction, manufacturing, and engineering projects.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
