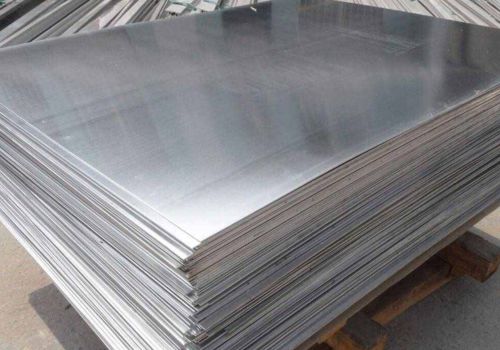

Liza Aluminium, located in Manila, Philippines, stands out as a top manufacturer and supplier of Aluminium 2024 Sheets and Plates. These products are celebrated for their remarkable strength, toughness, and resistance to fatigue. You’ll find these high-performance sheets and plates in critical sectors like aerospace, defense, and transportation, where reliability and precision are non-negotiable. Liza Aluminium is committed to ensuring that every product adheres to international quality standards, boasting excellent machinability, precise dimensions, and outstanding mechanical properties. With a strong emphasis on quality, innovation, and customer satisfaction, the company has earned a reputation as a trusted supplier of premium aluminium materials throughout the Philippines.
Aluminium 2024 Sheets and Plates are primarily made from an aluminium alloy that includes copper (3.8–4.9%), magnesium (1.2–1.8%), and manganese (0.3–0.9%), along with small amounts of silicon, iron, and zinc. They have a density of 2.78 g/cm³ and deliver impressive mechanical strength, featuring a tensile strength of 470–520 MPa and a yield strength of about 325 MPa. These sheets and plates come in T3/T3511 tempers, which are solution heat-treated, stress-relieved, and naturally aged to strike the perfect balance between strength and toughness, while also offering excellent machinability.
Standards : ASTM B209 / ASME SB209
Temper : O, T3,T4, T6, T651
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
| min. | Bal | 3.80 | 0.30 | 1.20 | ||||||
| max. | Bal | 0.50 | 0.50 | 4.90 | 0.90 | 1.80 | 0.10 | 0.25 | 0.15 | 0.05 |
| Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| (annealed) | 32 | 14 | 12 |
| T3 | 63 | 42 | 15 |
Liza Aluminium based in Manila, Philippines is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlCu4Mg1 | AU4G1 | 3.1355 | A92024 | AlCu4Mg1 | 2024 | AlCuMg2 |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
Yes, we offer custom sizes for Aluminium 2024 Sheets and Plates to meet specific project needs. Our team at Liza Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@lizaaluminium.com
Aluminium 2024 Sheets and Plates are extensively utilized in applications that demand a high strength-to-weight ratio and exceptional fatigue resistance. They’re perfect for aircraft structures, fuselage panels, wings, and various aerospace components. Beyond that, they find their place in automotive frames, military vehicles, precision machinery, and engineering projects where strength and reliability are crucial. While they do have some limitations in corrosion resistance, these sheets and plates can be anodized or coated for added protection. Their unique blend of strength, toughness, and machinability makes Aluminium 2024 Sheets and Plates a top choice for challenging engineering and industrial applications.
