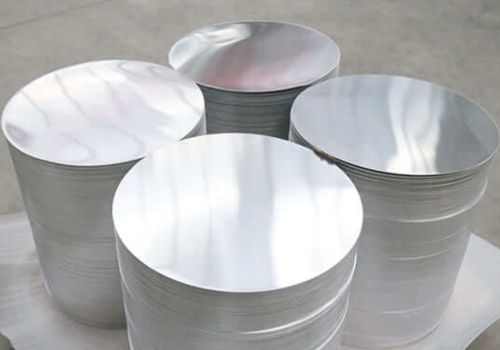

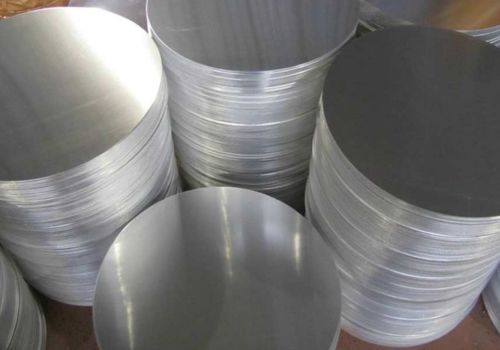

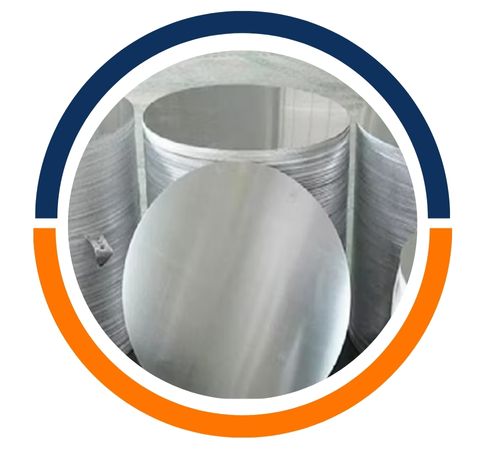

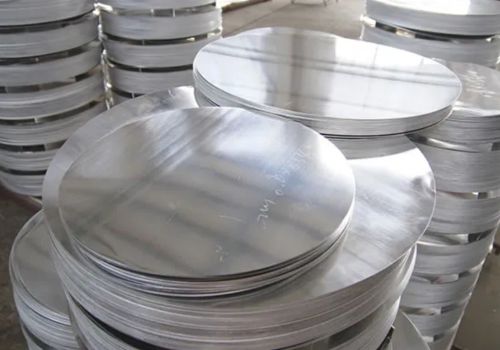

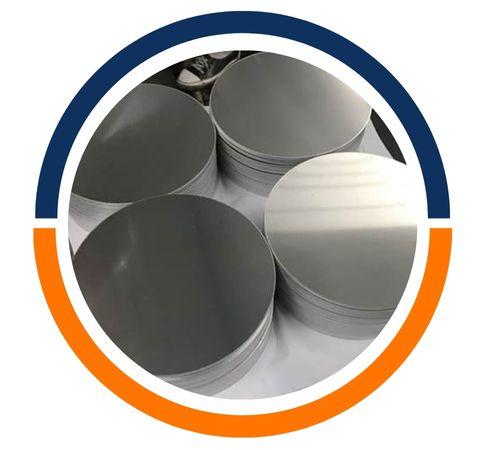

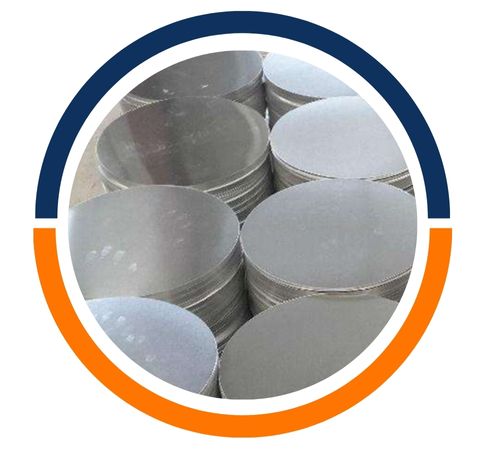

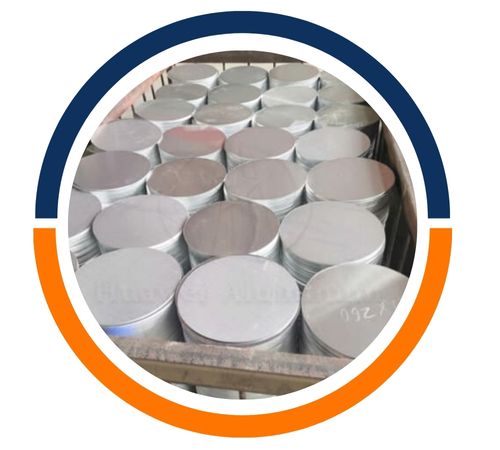

Liza Aluminium, located in Manila, Philippines, has built a solid reputation as a reliable manufacturer and supplier of Aluminium 2017 Circles. These circles are celebrated for their impressive strength, machinability, and performance even in high-stress situations. You’ll find these precision-engineered circles in various industries, including aerospace, automotive, and structural applications, where durability, reliability, and precise dimensions are a must. Liza Aluminium is committed to ensuring that every product meets international quality standards, delivering exceptional mechanical properties and smooth surface finishes. With a strong emphasis on quality, precision, and customer satisfaction, the company has established itself as a top supplier of premium aluminium materials throughout the Philippines.
Aluminium 2017 Circles are primarily made from an aluminium alloy that includes copper (3.5–4.5%), manganese (0.4–1.0%), and magnesium (0.4–0.8%), along with small amounts of silicon, iron, and zinc. They have a density of 2.78 g/cm³ and boast excellent mechanical strength, featuring a tensile strength of 400–480 MPa and a yield strength of around 275 MPa. This alloy is known for its high machinability, moderate resistance to corrosion, and good fatigue performance, making it a great fit for components that face dynamic loads.
| Specifications | ASTM B209 / ASME SB209 |
|---|---|
| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 1 Mm To 100 mm |
| Diameter | Upto 2000 mm |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max |

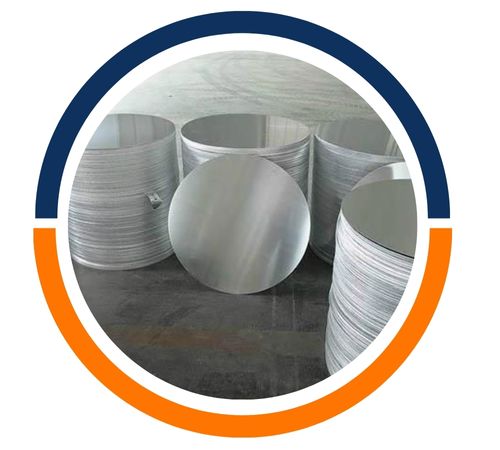

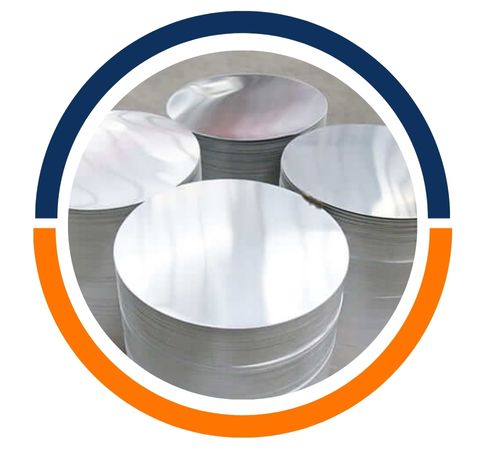

| Circles Form | Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles |
| Finish | Mill, Customer specific finish |
| Aluminum Circle Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Al | Si | Mg | Cr | Zn | Fe | Cu | Mn | Ti | Other Each | Other Total |
| Bal. | 0.20-0.8 | 0.40-0.8 | 0.10 max | 0.25 max | 0.7 max | 3.5-4.5 | 0.40-1.0 | 0.15 max | 0.05 max | 0.15 max |
| Material | Tensile Strength (N/mm²) min | Yield Strength | Elongation in 4D % | ||
| ksi | Mpa | ksi | Mpa | ||
| Al 2017 | 55 | 379 | 32 | 221 | 12 |
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
|---|---|---|---|---|---|---|
| AW-AlCu4MgSi | AU4G | 3.1325 | A92017 | AlCu4SiMg | 2017 | AlCuMg1 |
Liza Aluminium based in Manila, Philippines is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 2017 Circles to meet specific project needs. Our team at Liza Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@lizaaluminium.com
These Aluminium 2017 Circles find their way into aerospace fittings, structural parts, automotive components, and precision machinery where strength and toughness are essential. They’re also used in fasteners, rivets, and other high-strength industrial applications. While the alloy does have moderate corrosion resistance, applying protective coatings or anodizing can significantly boost its durability in tough environments. The blend of high strength, machinability, and reliability makes Aluminium 2017 Circles a fantastic choice for demanding engineering and industrial needs.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
